DG1412EEN-T1-GE4 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):1.5Ohm
• Channel-to-Channel Matching (ΔRon):40mOhm
• Voltage - Supply, Single (V+):4.5V ~ 24V
• Voltage - Supply, Dual (V±):±4.5V ~ 15V
• Switch Time (Ton, Toff) (Max):140ns, 110ns
• -3db Bandwidth:150MHz
• Charge Injection:-41pC
• Channel Capacitance (CS(off), CD(off)):24pF, 23pF
• Current - Leakage (IS(off)) (Max):500pA
• Crosstalk:-104dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

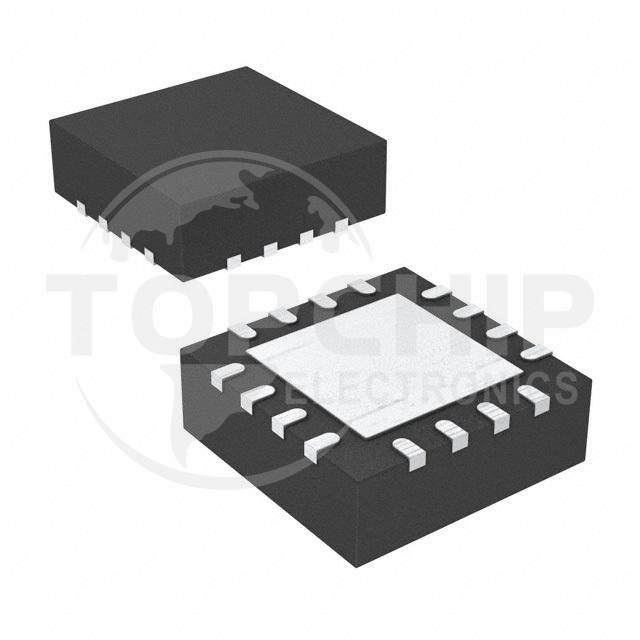

• Package / Case:16-VFQFN Exposed Pad
• Supplier Device Package:16-QFN (4x4)
