MAX4734EGC+ Specifications

• Series:-
• Package:Tube
• Part Status:Last Time Buy
• Switch Circuit:SP4T
• Multiplexer/Demultiplexer Circuit:4:1
• Number of Circuits:1
• On-State Resistance (Max):800mOhm
• Channel-to-Channel Matching (ΔRon):100mOhm
• Voltage - Supply, Single (V+):1.6V ~ 3.6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):25ns, 20ns
• -3db Bandwidth:90MHz
• Charge Injection:60pC
• Channel Capacitance (CS(off), CD(off)):33pF, 117pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-56dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

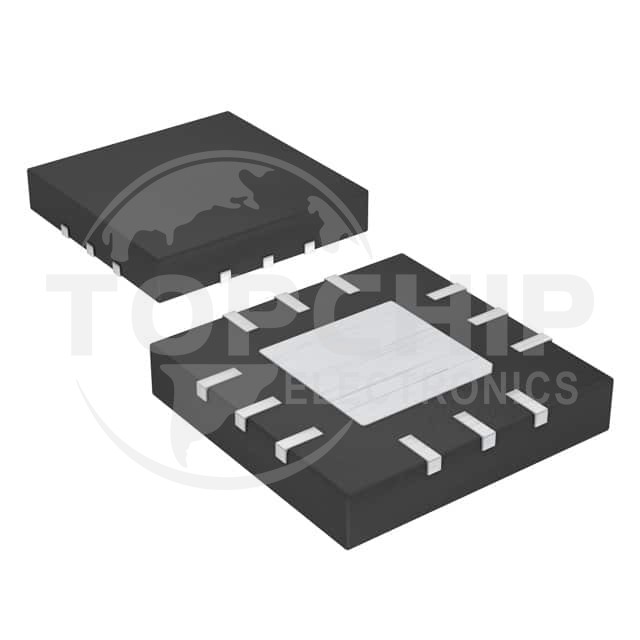

• Package / Case:12-VFQFN Exposed Pad
• Supplier Device Package:12-QFN (3x3)
