MAX337EWI+ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:2
• On-State Resistance (Max):400Ohm
• Channel-to-Channel Matching (ΔRon):5Ohm
• Voltage - Supply, Single (V+):4.5V ~ 20V
• Voltage - Supply, Dual (V±):±4.5V ~ 20V
• Switch Time (Ton, Toff) (Max):500ns, 500ns
• -3db Bandwidth:-
• Charge Injection:3.5pC
• Channel Capacitance (CS(off), CD(off)):2pF, 20pF
• Current - Leakage (IS(off)) (Max):20pA
• Crosstalk:-86dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

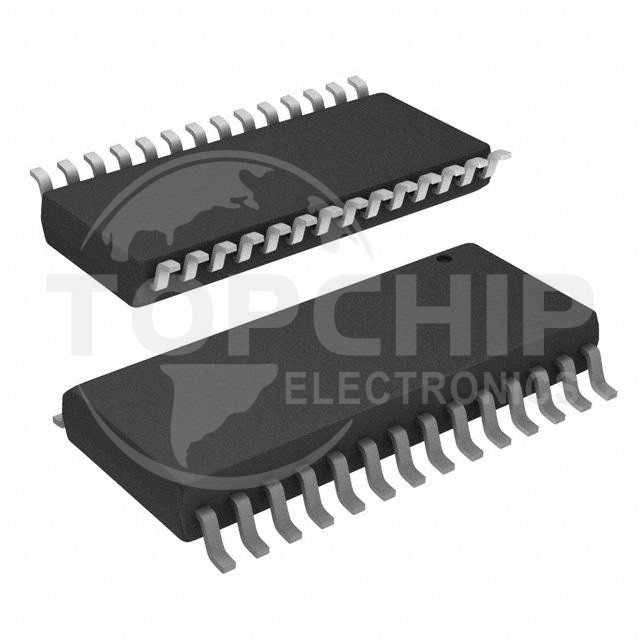

• Package / Case:28-SOIC (0.295", 7.50mm Width)
• Supplier Device Package:28-SOIC
