SN74LVC1G3157DRYR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):15Ohm
• Channel-to-Channel Matching (ΔRon):100mOhm
• Voltage - Supply, Single (V+):1.65V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):5.7ns, 3.8ns
• -3db Bandwidth:340MHz
• Charge Injection:7pC
• Channel Capacitance (CS(off), CD(off)):5.2pF
• Current - Leakage (IS(off)) (Max):1µA
• Crosstalk:-54dB @ 10MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

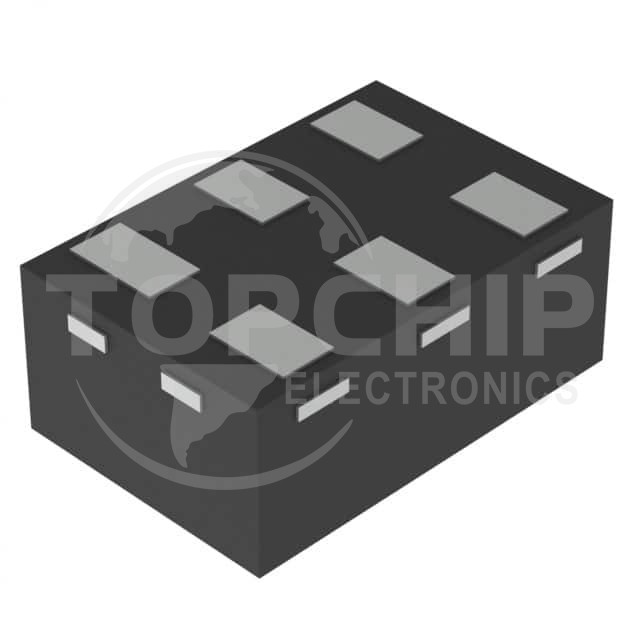

• Package / Case:6-UFDFN
• Supplier Device Package:6-SON (1.45x1)
