MAX314FESE+ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:SPST - NO/NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):10Ohm
• Channel-to-Channel Matching (ΔRon):50mOhm
• Voltage - Supply, Single (V+):9V ~ 36V
• Voltage - Supply, Dual (V±):±4.5V ~ 20V
• Switch Time (Ton, Toff) (Max):225ns, 185ns
• -3db Bandwidth:-
• Charge Injection:70pC
• Channel Capacitance (CS(off), CD(off)):20pF, 20pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-104dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

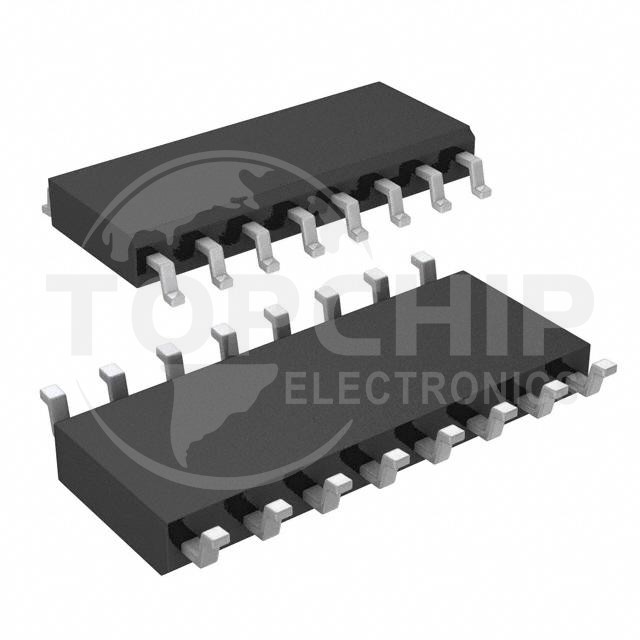

• Package / Case:16-SOIC (0.154", 3.90mm Width)
• Supplier Device Package:16-SO
