MPC508AU/1K Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:1
• On-State Resistance (Max):1.5kOhm
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):-
• Voltage - Supply, Dual (V±):±5V ~ 22V
• Switch Time (Ton, Toff) (Max):200ns, 250ns (Typ)
• -3db Bandwidth:-
• Charge Injection:-
• Channel Capacitance (CS(off), CD(off)):5pF, 25pF
• Current - Leakage (IS(off)) (Max):500pA (Typ)
• Crosstalk:-
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

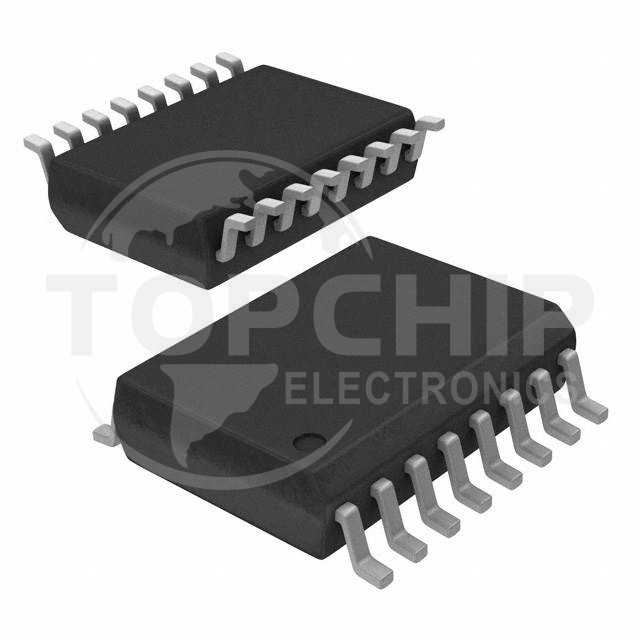

• Package / Case:16-SOIC (0.295", 7.50mm Width)
• Supplier Device Package:16-SOIC
