SN74HC4066PWT Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):30Ohm (Typ)
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):2V ~ 6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):31ns, 34ns
• -3db Bandwidth:30MHz
• Charge Injection:-
• Channel Capacitance (CS(off), CD(off)):0.5pF, 9pF
• Current - Leakage (IS(off)) (Max):100nA
• Crosstalk:-45dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

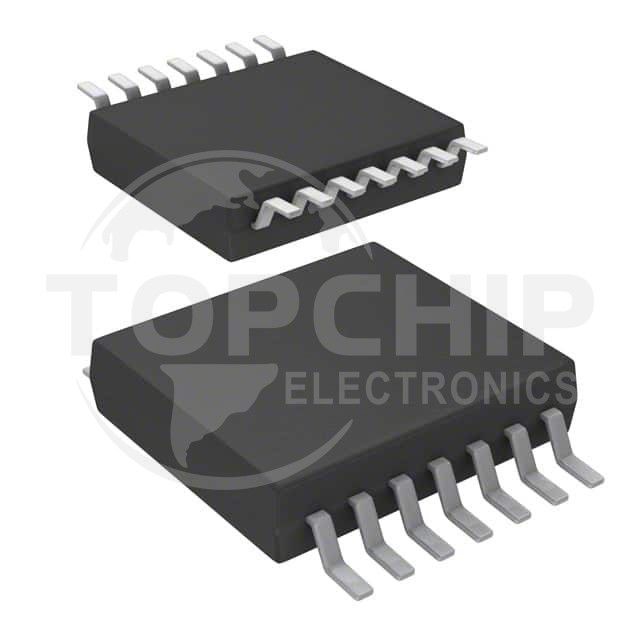

• Package / Case:14-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:14-TSSOP
