DG449DS-T1-E3 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):45Ohm
• Channel-to-Channel Matching (ΔRon):5Ohm (Max)
• Voltage - Supply, Single (V+):7V ~ 36V
• Voltage - Supply, Dual (V±):±4.5V ~ 20V
• Switch Time (Ton, Toff) (Max):146ns, 104ns
• -3db Bandwidth:-
• Charge Injection:5pC
• Channel Capacitance (CS(off), CD(off)):8pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-80dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

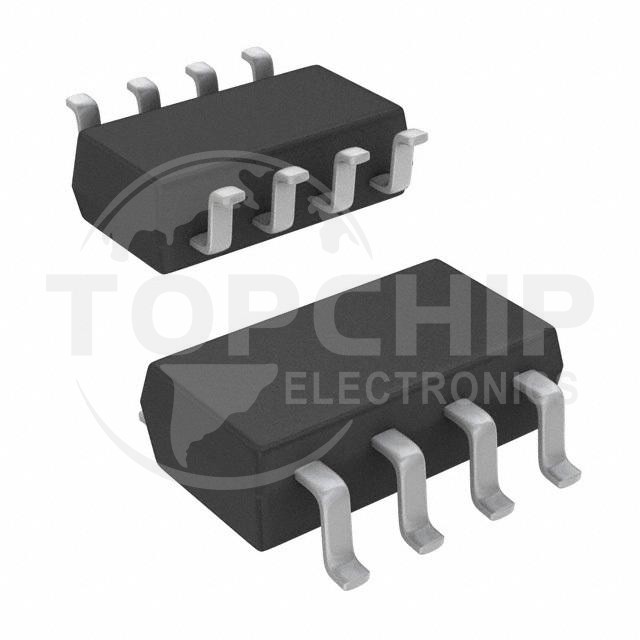

• Package / Case:SOT-23-8
• Supplier Device Package:SOT-23-8
