ADG707BRUZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:2
• On-State Resistance (Max):4.5Ohm
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):1.8V ~ 5.5V
• Voltage - Supply, Dual (V±):±2.5V
• Switch Time (Ton, Toff) (Max):32ns, 16ns (Typ)
• -3db Bandwidth:36MHz
• Charge Injection:8pC
• Channel Capacitance (CS(off), CD(off)):13pF, 90pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-80dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

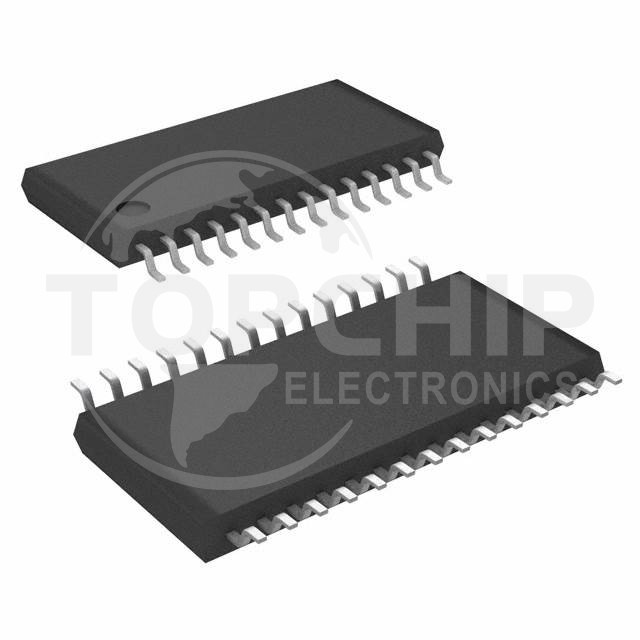

• Package / Case:28-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:28-TSSOP
