MAX4760EWX+T Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:DPDT
• Multiplexer/Demultiplexer Circuit:2:2
• Number of Circuits:4
• On-State Resistance (Max):3.5Ohm
• Channel-to-Channel Matching (ΔRon):200mOhm
• Voltage - Supply, Single (V+):1.8V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):140ns, 50ns
• -3db Bandwidth:150MHz
• Charge Injection:15pC
• Channel Capacitance (CS(off), CD(off)):25pF
• Current - Leakage (IS(off)) (Max):5nA
• Crosstalk:-95dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

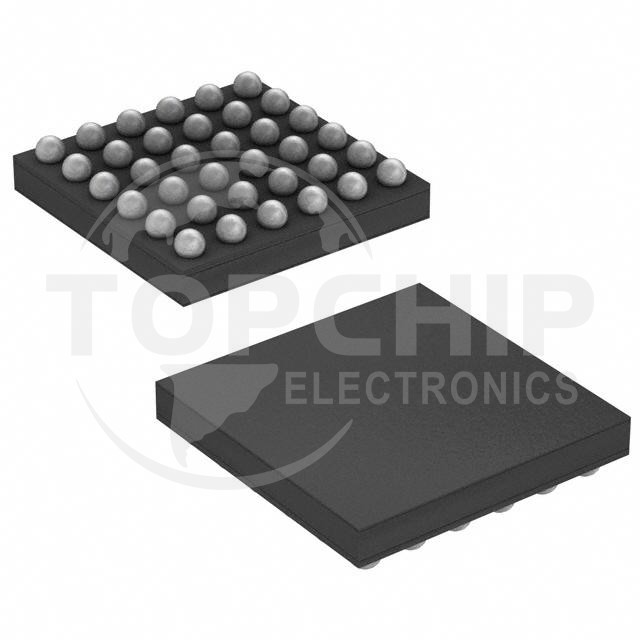

• Package / Case:36-WFBGA, WLBGA
• Supplier Device Package:36-WLP (3.07x3.07)
