MAX4603CWE+ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:SPST - NO/NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):2.5Ohm
• Channel-to-Channel Matching (ΔRon):100mOhm
• Voltage - Supply, Single (V+):4.5V ~ 36V
• Voltage - Supply, Dual (V±):±4.5V ~ 20V
• Switch Time (Ton, Toff) (Max):250ns, 350ns
• -3db Bandwidth:-
• Charge Injection:120pC
• Channel Capacitance (CS(off), CD(off)):55pF, 55pF
• Current - Leakage (IS(off)) (Max):500pA
• Crosstalk:-59dB @ 1MHz
• Operating Temperature:0°C ~ 70°C (TA)
• Mounting Type:Surface Mount

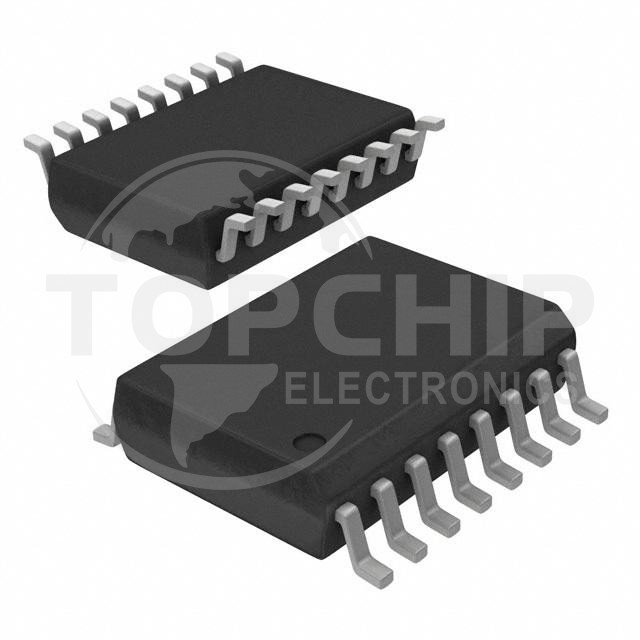

• Package / Case:16-SOIC (0.295", 7.50mm Width)
• Supplier Device Package:16-SO
