MAX314LEUE+T Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPST - NO/NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):10Ohm
• Channel-to-Channel Matching (ΔRon):300mOhm
• Voltage - Supply, Single (V+):4.5V ~ 36V
• Voltage - Supply, Dual (V±):±4.5V ~ 20V
• Switch Time (Ton, Toff) (Max):225ns, 185ns
• -3db Bandwidth:-
• Charge Injection:20pC
• Channel Capacitance (CS(off), CD(off)):15pF, 15pF
• Current - Leakage (IS(off)) (Max):500pA
• Crosstalk:-85dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

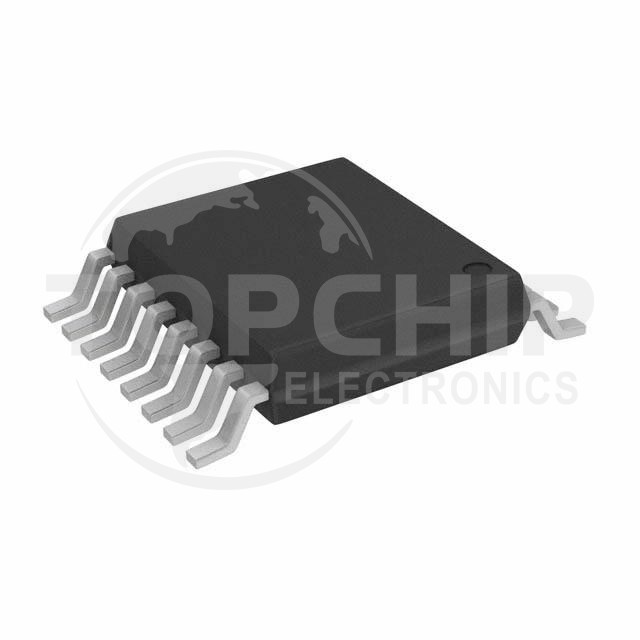

• Package / Case:16-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:16-TSSOP
