NLAS2750MUTAG Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:2
• On-State Resistance (Max):1.3Ohm
• Channel-to-Channel Matching (ΔRon):100mOhm
• Voltage - Supply, Single (V+):1.8V ~ 5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):150ns, 130ns
• -3db Bandwidth:44MHz
• Charge Injection:60pC
• Channel Capacitance (CS(off), CD(off)):5pF
• Current - Leakage (IS(off)) (Max):250nA
• Crosstalk:-60dB @ 300kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

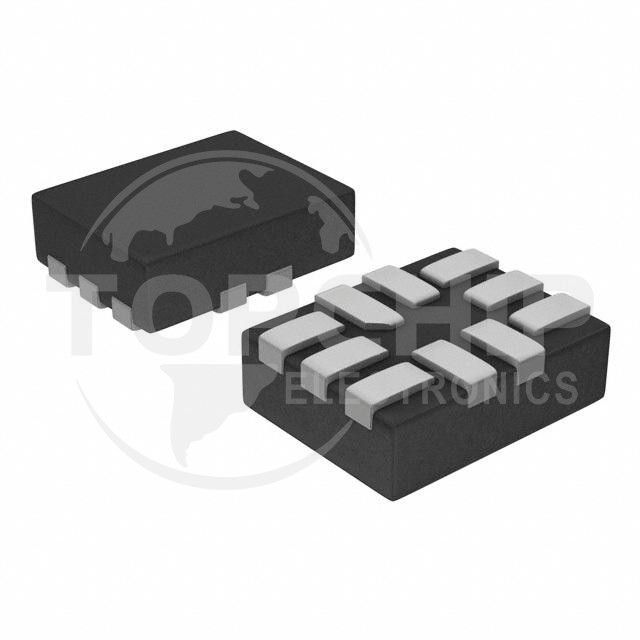

• Package / Case:10-UFQFN
• Supplier Device Package:10-UQFN (1.4x1.8)
