ADG723ACPZ-REEL7 Specifications

• Series:-
• Package:Bulk
• Part Status:Obsolete
• Switch Circuit:SPST - NO/NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:2
• On-State Resistance (Max):4Ohm
• Channel-to-Channel Matching (ΔRon):300mOhm
• Voltage - Supply, Single (V+):1.8V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):14ns, 6ns (Typ)
• -3db Bandwidth:200MHz
• Charge Injection:2pC
• Channel Capacitance (CS(off), CD(off)):7pF, 7pF
• Current - Leakage (IS(off)) (Max):10pA (Typ)
• Crosstalk:-97dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

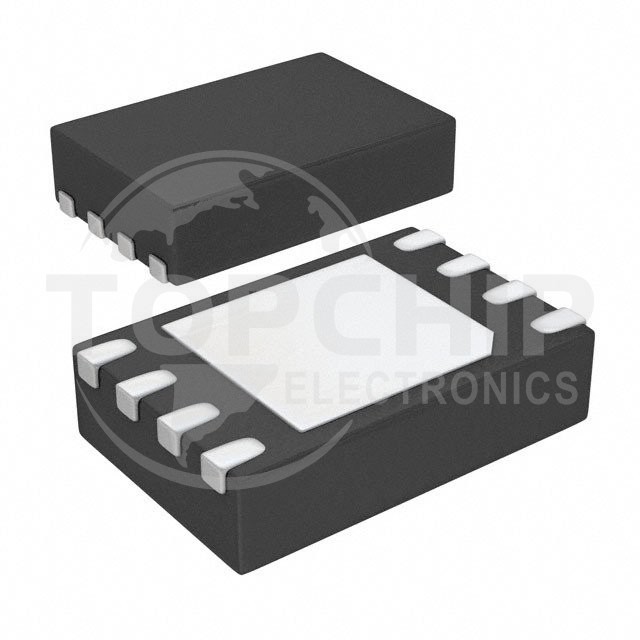

• Package / Case:8-WFDFN Exposed Pad, CSP
• Supplier Device Package:8-LFCSP-WD (2x3)
