MAX4691EGE+T Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:1
• On-State Resistance (Max):70Ohm
• Channel-to-Channel Matching (ΔRon):2Ohm
• Voltage - Supply, Single (V+):2.7V ~ 11V
• Voltage - Supply, Dual (V±):±2V ~ 5.5V
• Switch Time (Ton, Toff) (Max):300ns, 100ns
• -3db Bandwidth:-
• Charge Injection:0.1pC
• Channel Capacitance (CS(off), CD(off)):9pF, 68pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-75dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

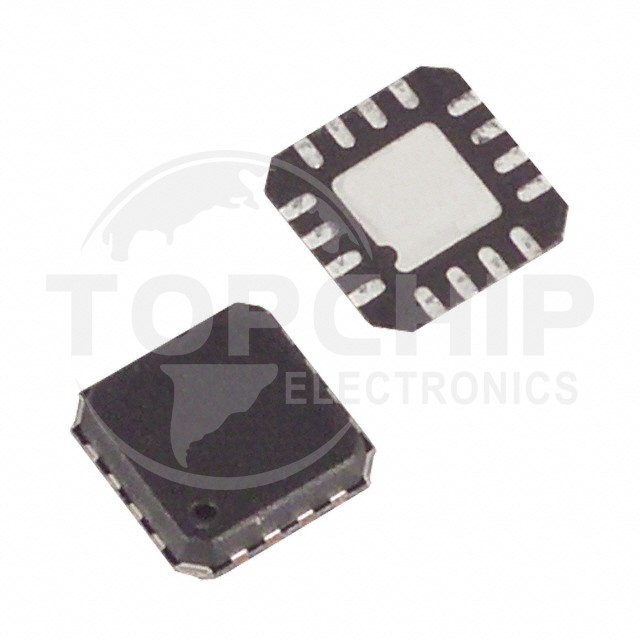

• Package / Case:16-VQFN Exposed Pad
• Supplier Device Package:16-QFN (4x4)
