MAX4599EXT+T Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):60Ohm
• Channel-to-Channel Matching (ΔRon):200mOhm
• Voltage - Supply, Single (V+):2V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):30ns, 25ns
• -3db Bandwidth:200MHz
• Charge Injection:3pC
• Channel Capacitance (CS(off), CD(off)):8pF, 8pF
• Current - Leakage (IS(off)) (Max):500pA
• Crosstalk:-
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

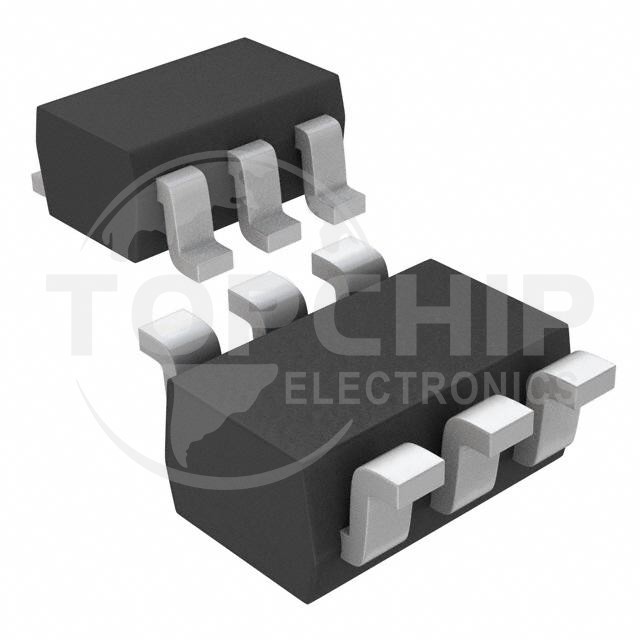

• Package / Case:6-TSSOP, SC-88, SOT-363
• Supplier Device Package:SC-70-6
