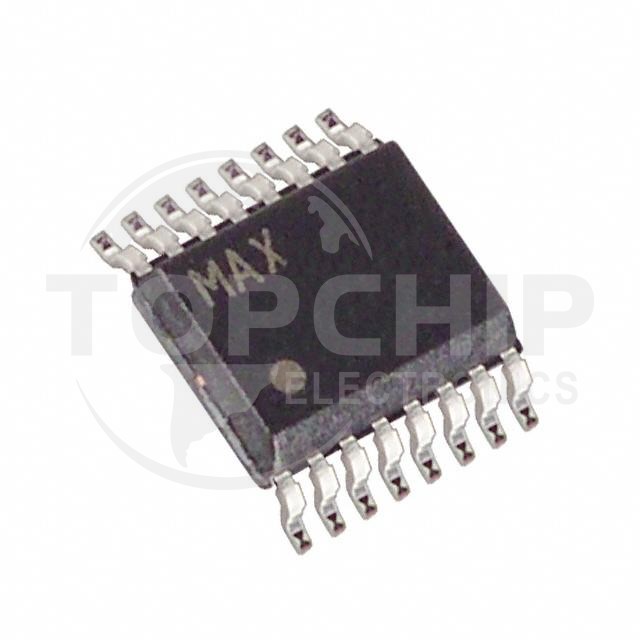

MAX4066ACEE+T Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):45Ohm
• Channel-to-Channel Matching (ΔRon):500mOhm
• Voltage - Supply, Single (V+):2V ~ 16V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):100ns, 75ns
• -3db Bandwidth:100MHz
• Charge Injection:1pC
• Channel Capacitance (CS(off), CD(off)):9pF, 9pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-86dB @ 1MHz
• Operating Temperature:0°C ~ 70°C (TA)
• Mounting Type:Surface Mount
• Package / Case:16-SSOP (0.154", 3.90mm Width)
• Supplier Device Package:16-QSOP
