LP3891EMR-1.2/NOPB Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):5.5V
• Voltage - Output (Min/Fixed):1.2V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.43V @ 800mA
• Current - Output:800mA
• Current - Quiescent (Iq):30 µA
• Current - Supply (Max):8 mA
• PSRR:80dB ~ 65dB (120Hz ~ 1kHz)
• Control Features:Enable
• Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount

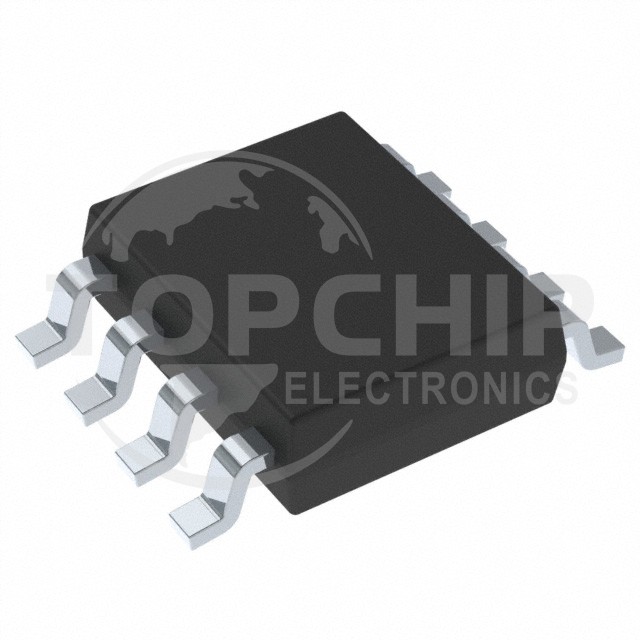

• Package / Case:8-PowerSOIC (0.154", 3.90mm Width)
• Supplier Device Package:8-SO PowerPad
