7916-26MBA

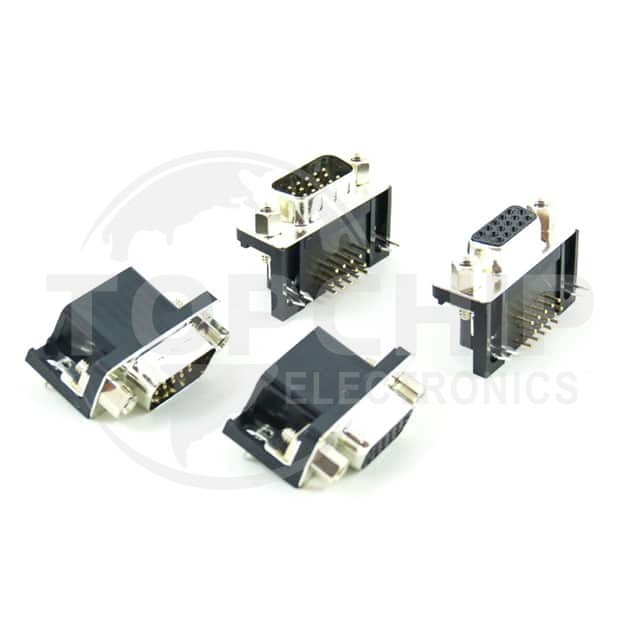

Image is for reference, please contact us to get the real picture

Manufacturer Part
7916-26MBA
Manufacturer
Oupiin
Description
HD D-SUB RIGHT ANGLE DIP, MALE,
Category
Connectors, Interconnects
Family
D-Sub Connectors
Series
-
In Stock
1000
Datasheets
-

7916-26MBA Specifications

  • Series:7916
  • Package:Tray
  • Part Status:Active
  • Connector Style:D-Sub, High Density
  • Connector Type:Plug, Male Pins
  • Number of Positions:26
  • Number of Rows:3
  • Mounting Type:Through Hole, Right Angle
  • Shell Size, Connector Layout:2 (DA, A) High Density
  • Contact Type:Signal
  • Flange Feature:Housing/Shell (4-40)
  • Termination:Solder
  • Shell Material, Finish:Steel, Nickel Plated
  • Contact Finish:Gold
  • Contact Finish Thickness:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Current Rating (Amps):1A
  • Backset Spacing:0.350" (8.89mm)
  • Features:Board Lock, Grounding Indents
