8309-6000

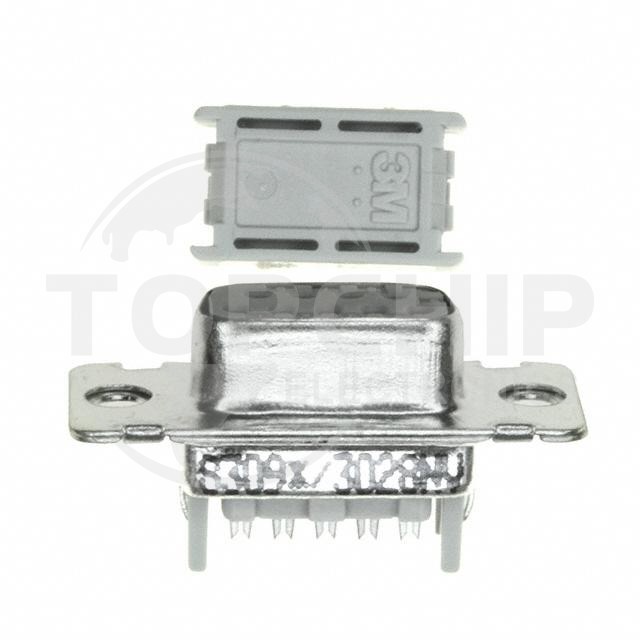

Image is for reference, please contact us to get the real picture

Manufacturer Part
8309-6000
Manufacturer
3M
Description
CONN D-SUB RCPT 9POS PNL MNT IDC
Category
Connectors, Interconnects
Family
D-Sub Connectors
Series
-
In Stock
1607
Datasheets
-

8309-6000 Specifications

  • Series:8300
  • Package:Tray
  • Part Status:Obsolete
  • Connector Style:D-Sub
  • Connector Type:Receptacle, Female Sockets
  • Number of Positions:9
  • Number of Rows:2
  • Mounting Type:Panel Mount
  • Shell Size, Connector Layout:1 (DE, E)
  • Contact Type:Signal
  • Flange Feature:Housing/Shell (Unthreaded)
  • Termination:IDC, Ribbon Cable
  • Shell Material, Finish:Steel, Tin Plated
  • Contact Finish:Gold
  • Contact Finish Thickness:30.0µin (0.76µm)
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Current Rating (Amps):1A
  • Backset Spacing:-
  • Features:Feed Through
