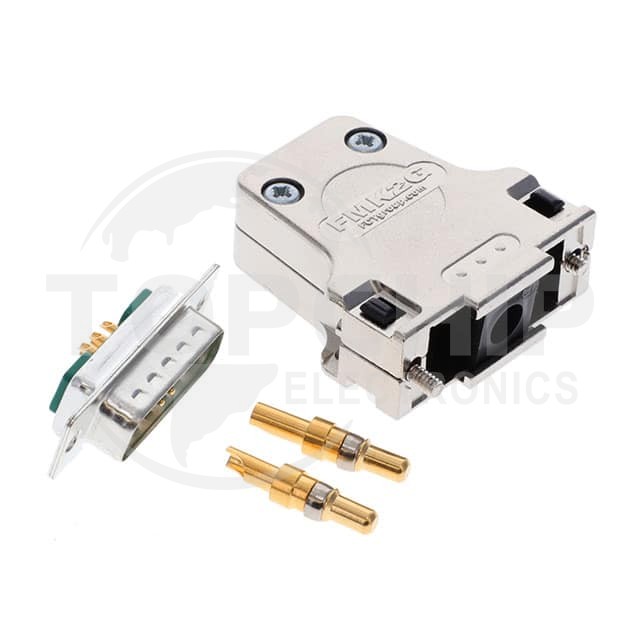

1731140083 Specifications

• Series:FMK, FCT
• Package:Bulk
• Part Status:Active
• Connector Style:D-Sub, Combo
• Connector Type:Plug, Male Pins
• Number of Positions:7 (5 + 2 Power)
• Number of Rows:2
• Mounting Type:Free Hanging (In-Line)
• Shell Size, Connector Layout:2 (DA, A) - 7W2
• Contact Type:Signal and Power
• Flange Feature:Housing/Shell (Unthreaded)
• Termination:Solder Cup
• Shell Material, Finish:Steel, Tin Plated
• Contact Finish:Gold
• Contact Finish Thickness:4.00µin (0.100µm)
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Current Rating (Amps):5A, 20A
• Backset Spacing:-
• Features:Backshell, Cable Clamp, Grounding Indents, Mounting Hardware, Strain Relief
