0836199011

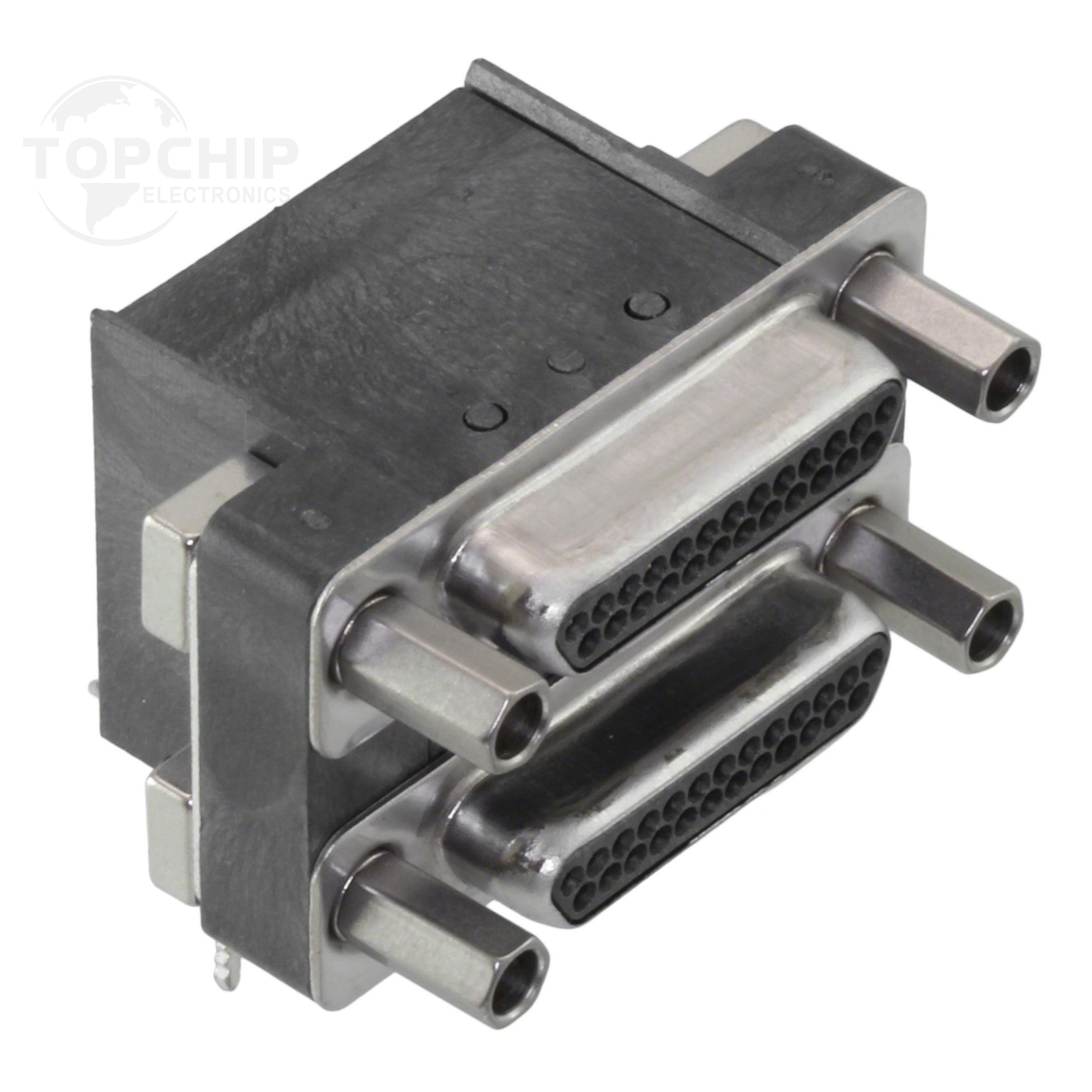

Image is for reference, please contact us to get the real picture

Manufacturer Part
0836199011
Manufacturer
Woodhead - Molex
Description
CONN MICRO-D PLUG 25POS R/A SLDR
Category
Connectors, Interconnects
Family
D-Sub Connectors
Series
-
In Stock
140
Datasheets
-

0836199011 Specifications

  • Series:Commercial Micro-D Series 83619
  • Package:Tube
  • Part Status:Active
  • Connector Style:D-Type, Micro-D - Stacked
  • Connector Type:Plug, Male Pins
  • Number of Positions:25, 25
  • Number of Rows:2, 2
  • Mounting Type:Panel Mount, Through Hole, Right Angle
  • Shell Size, Connector Layout:0.050 Pitch x 0.050 Row to Row
  • Contact Type:Signal
  • Flange Feature:Mating Side, Female Screwlock (2-56)
  • Termination:Solder
  • Shell Material, Finish:Steel, Nickel Plated
  • Contact Finish:Gold
  • Contact Finish Thickness:15.0µin (0.38µm)
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Current Rating (Amps):1A
  • Backset Spacing:-
  • Features:Board Lock, Shielded
