3128-5-00-15-00-00-08-0

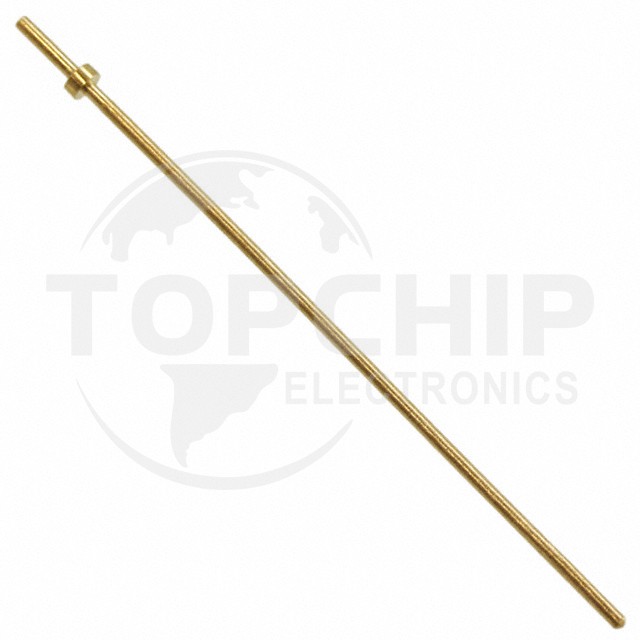

Image is for reference, please contact us to get the real picture

Manufacturer Part
3128-5-00-15-00-00-08-0
Manufacturer
Mill-Max
Description
CONN PC PIN CIRC 0.020DIA GOLD
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
Series
-
In Stock
12624
Datasheets
-

3128-5-00-15-00-00-08-0 Specifications

  • Series:3128
  • Package:Bulk
  • Part Status:Active
  • Terminal Type:PC Pin
  • Terminal Style:Single End
  • Pin Size - Above Flange:0.020" (0.51mm) Dia
  • Pin Size - Below Flange:0.020" (0.51mm) Dia
  • Length - Above Flange:0.930" (23.62mm)
  • Length - Below Flange:0.100" (2.54mm)
  • Length - Overall:1.050" (26.67mm)
  • Flange Diameter:0.046" (1.17mm)
  • Mounting Hole Diameter:0.024" (0.61mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Insulation:Non-Insulated
  • Board Thickness:-
  • Contact Material:Brass Alloy
  • Contact Finish:Gold
  • Contact Finish Thickness:10.0µin (0.25µm)
