5145-0-00-15-00-00-03-0

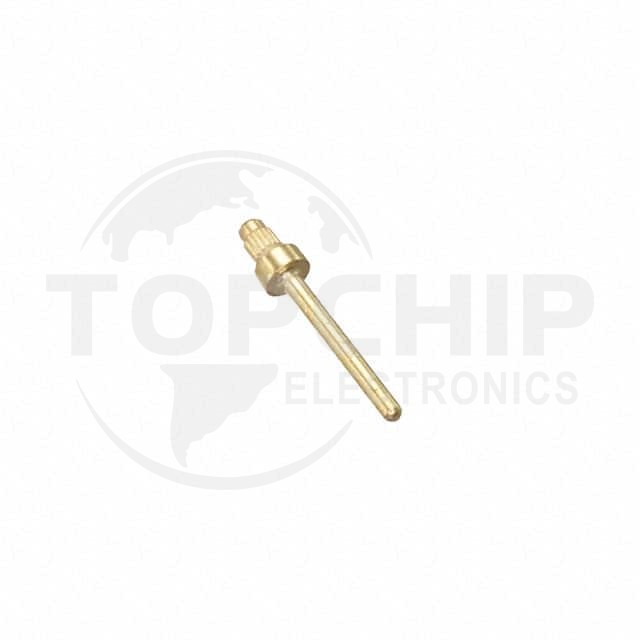

Image is for reference, please contact us to get the real picture

Manufacturer Part
5145-0-00-15-00-00-03-0
Manufacturer
Mill-Max
Description
PRESS-FIT PCB PIN FOR A NON-PLAT
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
Series
-
In Stock
1514
Datasheets
-

5145-0-00-15-00-00-03-0 Specifications

  • Series:5145
  • Package:Bulk
  • Part Status:Active
  • Terminal Type:PC Pin
  • Terminal Style:Single End
  • Pin Size - Above Flange:0.018" (0.46mm) Dia
  • Pin Size - Below Flange:0.023" (0.58mm) Dia
  • Length - Above Flange:0.165" (4.18mm)
  • Length - Below Flange:0.045" (1.14mm)
  • Length - Overall:0.230" (5.84mm)
  • Flange Diameter:0.045" (1.14mm)
  • Mounting Hole Diameter:0.026" (0.66mm)
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Knurled
  • Insulation:Non-Insulated
  • Board Thickness:-
  • Contact Material:Brass Alloy
  • Contact Finish:Gold
  • Contact Finish Thickness:10.0µin (0.25µm)
