M50-3142045R

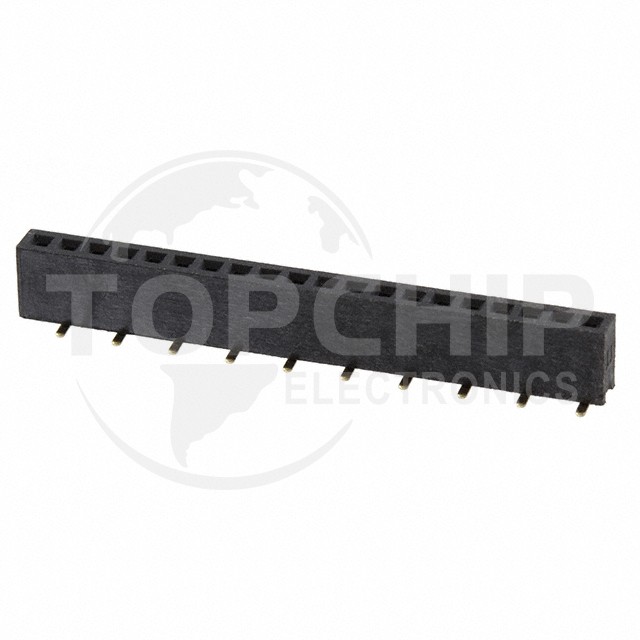

Image is for reference, please contact us to get the real picture

Manufacturer Part
M50-3142045R
Manufacturer
Harwin
Description
CONN RCPT 20POS 0.05 GOLD SMD
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
285
Datasheets
-

M50-3142045R Specifications

  • Series:Archer M50
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:20
  • Number of Positions Loaded:All
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:12.0µin (0.30µm)
  • Insulation Color:Black
  • Insulation Height:0.134" (3.40mm)
  • Contact Length - Post:-
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Pick and Place
  • Current Rating (Amps):1A
  • Voltage Rating:500VAC
