0038001335

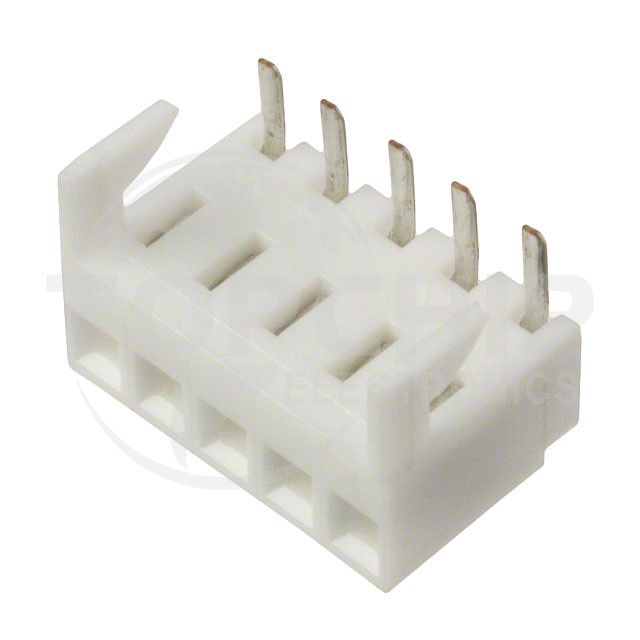

Image is for reference, please contact us to get the real picture

Manufacturer Part
0038001335
Manufacturer
Woodhead - Molex
Description
CONN RCPT 5POS 0.1 TIN EDGE MNT
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
2653
Datasheets
-

0038001335 Specifications

  • Series:KK254, 4455
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Non-Gendered
  • Style:Board to Board or Cable
  • Number of Positions:5
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Board Edge, Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Insulation Color:White
  • Insulation Height:0.185" (4.70mm)
  • Contact Length - Post:0.132" (3.35mm)
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Hooks
  • Current Rating (Amps):4A
  • Voltage Rating:250VAC
