2-1775099-0

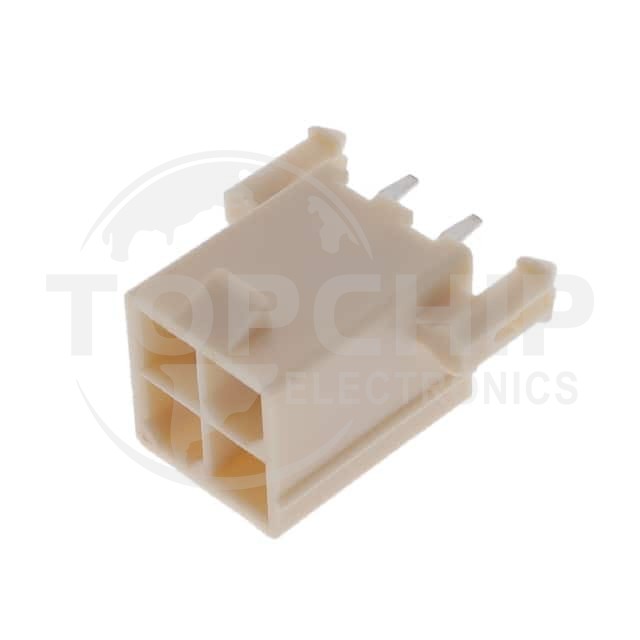

Image is for reference, please contact us to get the real picture

Manufacturer Part
2-1775099-0
Manufacturer
TE Connectivity AMP Connectors
Description
CONN RCPT 4POS 0.165 TIN PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
3217
Datasheets
-

2-1775099-0 Specifications

  • Series:ATX
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:-
  • Number of Positions:4
  • Number of Positions Loaded:All
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:120.0µin (3.05µm)
  • Insulation Color:Ivory
  • Insulation Height:0.504" (12.80mm)
  • Contact Length - Post:0.126" (3.20mm)
  • Operating Temperature:-25°C ~ 85°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Lock
  • Current Rating (Amps):9A
  • Voltage Rating:250VAC
