5025840270

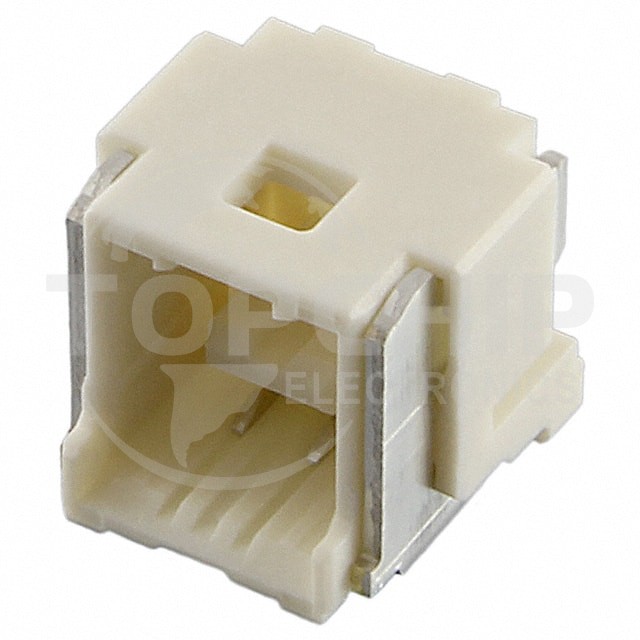

Image is for reference, please contact us to get the real picture

Manufacturer Part
5025840270
Manufacturer
Woodhead - Molex
Description
CONN RCPT 2POS 0.059 TIN SMD
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
50
Datasheets
-

5025840270 Specifications

  • Series:CLIK-Mate 502584
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Forked
  • Style:Board to Cable/Wire
  • Number of Positions:2
  • Number of Positions Loaded:All
  • Pitch - Mating:0.059" (1.50mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:39.4µin (1.00µm)
  • Insulation Color:Beige
  • Insulation Height:0.285" (7.25mm)
  • Contact Length - Post:-
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Pick and Place, Solder Retention
  • Current Rating (Amps):-
  • Voltage Rating:-
