M300-FV1034500

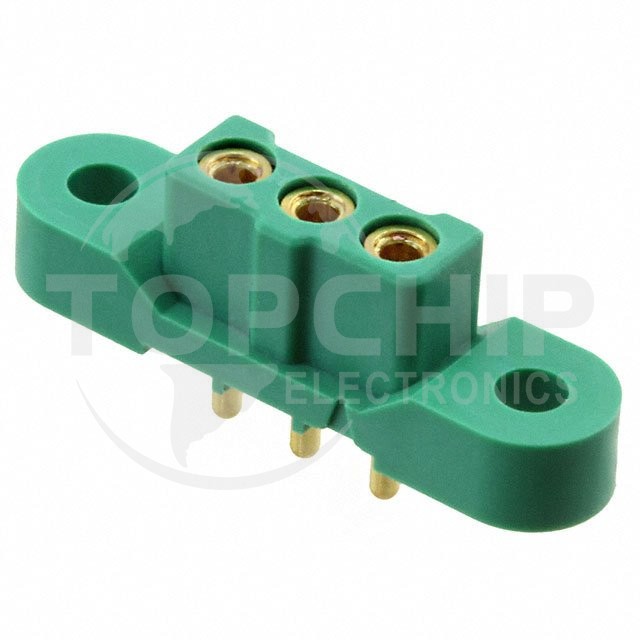

Image is for reference, please contact us to get the real picture

Manufacturer Part
M300-FV1034500
Manufacturer
Harwin
Description
CONN RCPT 3POS 0.118 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
84
Datasheets
-

M300-FV1034500 Specifications

  • Series:M300
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket, Power
  • Style:Board to Board or Cable
  • Number of Positions:3
  • Number of Positions Loaded:All
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:-
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:12.0µin (0.30µm)
  • Insulation Color:Green
  • Insulation Height:0.256" (6.50mm)
  • Contact Length - Post:0.126" (3.20mm)
  • Operating Temperature:-65°C ~ 175°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:-
  • Mated Stacking Heights:8.9mm
  • Ingress Protection:-
  • Features:Mating Flange
  • Current Rating (Amps):-
  • Voltage Rating:600V
