M80-4001042

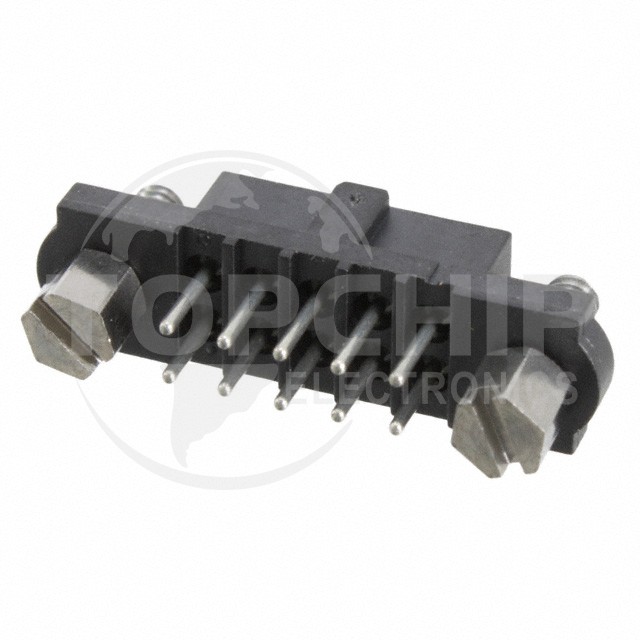

Image is for reference, please contact us to get the real picture

Manufacturer Part
M80-4001042
Manufacturer
Harwin
Description
CONN RCPT 10POS 0.079 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
8
Datasheets
-

M80-4001042 Specifications

  • Series:Datamate J-Tek
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:10
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Screw Lock
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:12.0µin (0.30µm)
  • Insulation Color:Black
  • Insulation Height:0.205" (5.20mm)
  • Contact Length - Post:0.118" (3.00mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:7.3mm, 7.55mm
  • Ingress Protection:-
  • Features:Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
  • Current Rating (Amps):-
  • Voltage Rating:120V
