0010101031

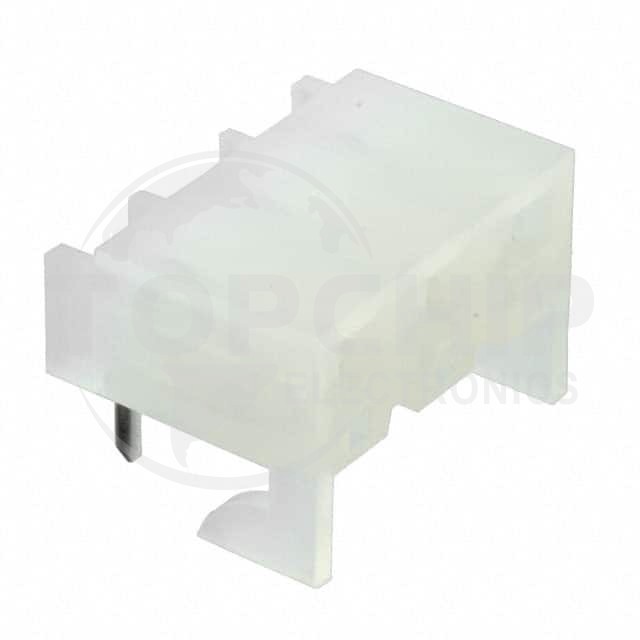

Image is for reference, please contact us to get the real picture

Manufacturer Part
0010101031
Manufacturer
Woodhead - Molex
Description
CONN RCPT 3POS 0.2 TIN EDGE MNT
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
120
Datasheets
-

0010101031 Specifications

  • Series:KK508, 3002
  • Package:Tray
  • Part Status:Obsolete
  • Connector Type:Receptacle
  • Contact Type:Non-Gendered
  • Style:Board to Board or Cable
  • Number of Positions:3
  • Number of Positions Loaded:All
  • Pitch - Mating:0.200" (5.08mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Board Edge, Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Insulation Color:Natural
  • Insulation Height:0.236" (6.00mm)
  • Contact Length - Post:0.170" (4.32mm)
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-2
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Hooks
  • Current Rating (Amps):5A
  • Voltage Rating:250V
