M22-5300605

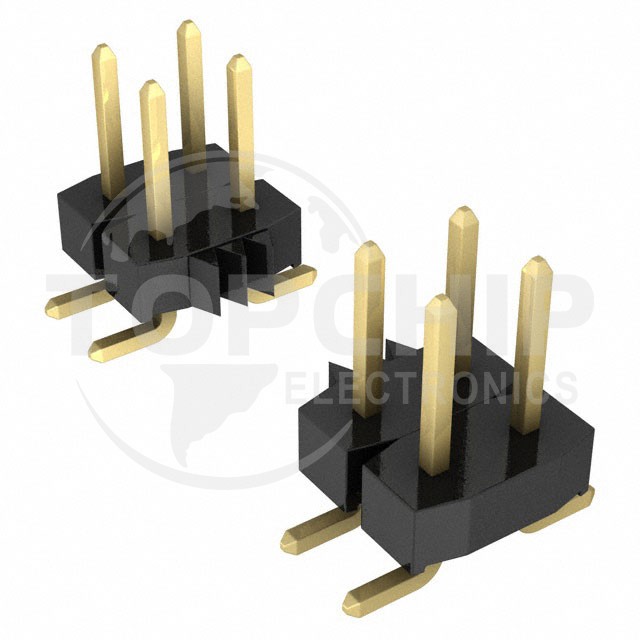

Image is for reference, please contact us to get the real picture

Manufacturer Part
M22-5300605
Manufacturer
Harwin
Description
CONN HEADER SMD 12POS 2MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
981
Datasheets
-

M22-5300605 Specifications

  • Series:M22
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header, Cuttable
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.138" (3.50mm)
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.059" (1.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:-
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA6T), Nylon 6T
  • Features:Board Guide
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:-
