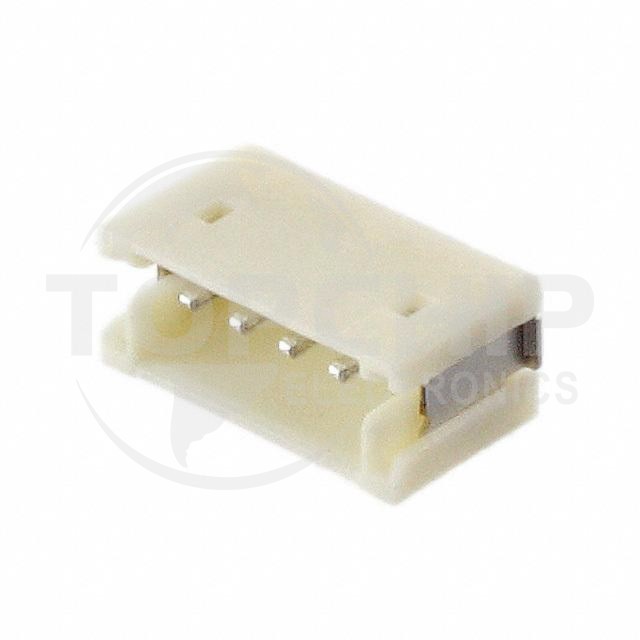

679304124022

Image is for reference, please contact us to get the real picture

Manufacturer Part
679304124022
Manufacturer
Wurth Elektronik Midcom
Description
CONN HEADER SMD 4POS 1.5MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
23
Datasheets
-

679304124022 Specifications

  • Series:WR-WTB
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.059" (1.50mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.197" (5.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA6T), Nylon 6T
  • Features:Pick and Place, Solder Retention
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Ivory
  • Current Rating (Amps):1A
  • Voltage Rating:50V
