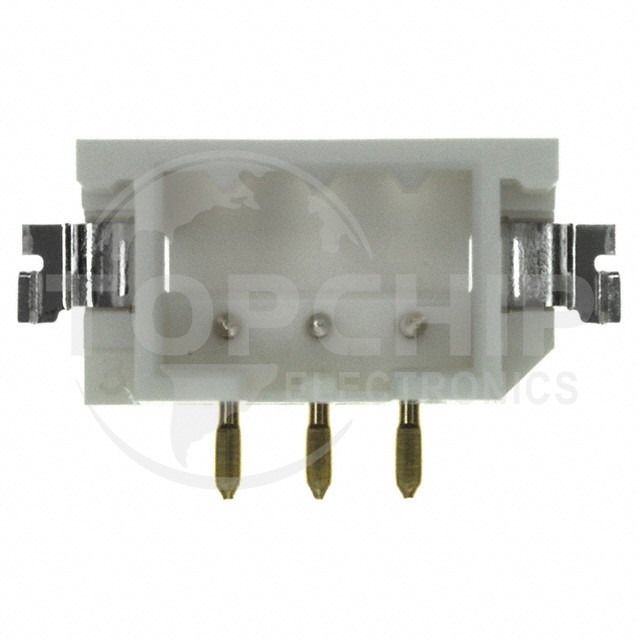

DF3EA-3P-2V(51) Specifications

• Series:DF3
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.079" (2.00mm)
• Number of Positions:3
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Surface Mount
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:-
• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.232" (5.90mm)
• Contact Shape:Circular
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:8.00µin (0.203µm)
• Contact Finish - Post:-
• Contact Material:Brass
• Insulation Material:Polyamide (PA), Nylon
• Features:Solder Retention
• Operating Temperature:-55°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Beige
• Current Rating (Amps):Varies by Wire Gauge
• Voltage Rating:250VAC
