M80-8280442P

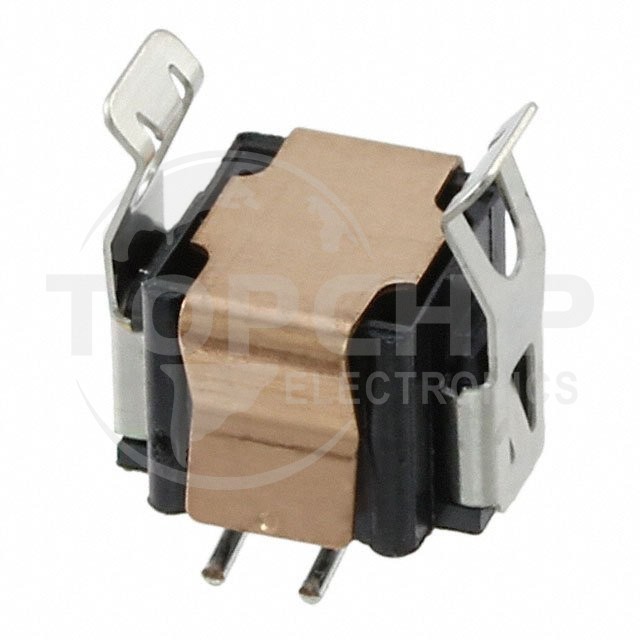

Image is for reference, please contact us to get the real picture

Manufacturer Part
M80-8280442P
Manufacturer
Harwin
Description
CONN HEADER SMD 4POS 2MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
172
Datasheets
-

M80-8280442P Specifications

  • Series:Datamate L-Tek
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:4
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Lock
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.205" (5.20mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Features:Pick and Place
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.2A
  • Voltage Rating:800V
