15130682601000

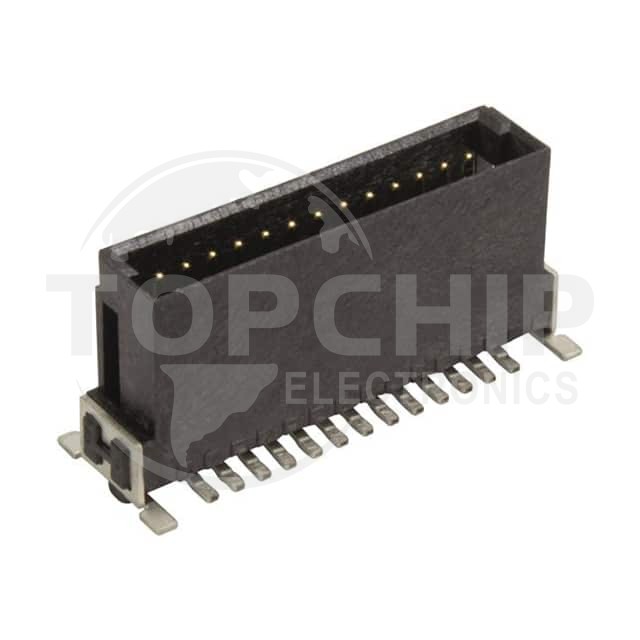

Image is for reference, please contact us to get the real picture

Manufacturer Part
15130682601000
Manufacturer
HARTING
Description
HAR-FLEX STR M 4.85MM 68P PL1
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
250
Datasheets
-

15130682601000 Specifications

  • Series:har-flex®
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:68
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.157" (4.00mm)
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.383" (9.73mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Guide, Pick and Place, Solder Retention
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
