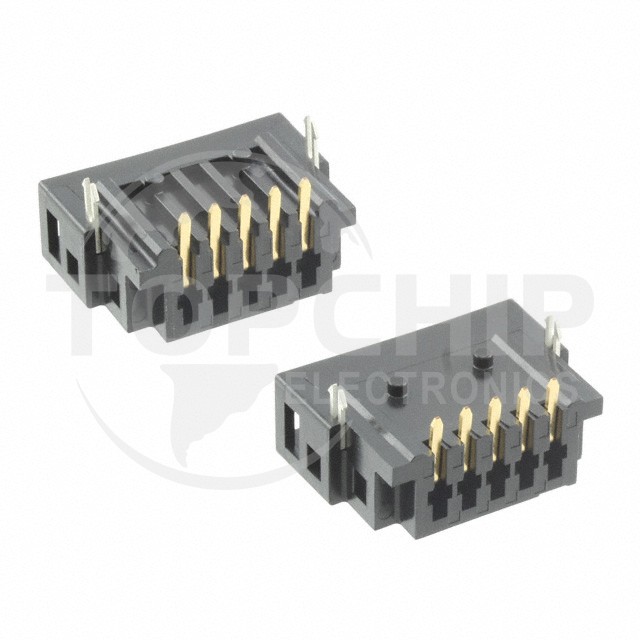

35605-5153-A00PE Specifications

• Series:Power Clamp, 356
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Blade
• Pitch - Mating:0.118" (3.00mm)
• Number of Positions:5
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Latch Holder
• Contact Length - Mating:-
• Contact Length - Post:0.110" (2.79mm)
• Overall Contact Length:-
• Insulation Height:0.366" (9.30mm)
• Contact Shape:Rectangular
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:20.0µin (0.51µm)
• Contact Finish - Post:Gold
• Contact Material:Copper Alloy
• Insulation Material:Polybutylene Terephthalate (PBT)
• Features:Board Guide, Board Lock
• Operating Temperature:-20°C ~ 75°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:250V
