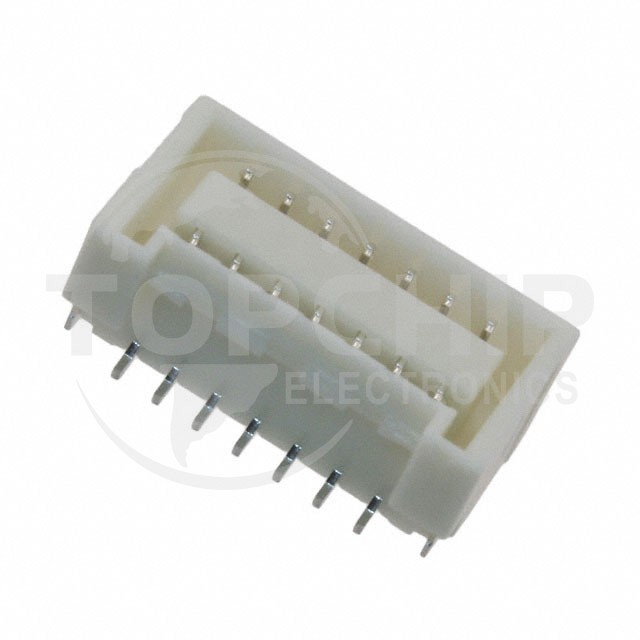

BM14B-ZPDSS-TF(LF)(SN) Specifications

• Series:ZPD
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Connector Type:Header
• Contact Type:Outer Shroud Contact
• Pitch - Mating:0.059" (1.50mm)
• Number of Positions:14
• Number of Rows:2
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Surface Mount
• Termination:Solder
• Fastening Type:Locking Ramp
• Contact Length - Mating:-
• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.219" (5.56mm)
• Contact Shape:Rectangular
• Contact Finish - Mating:Tin-Lead
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin-Lead
• Contact Material:Copper Alloy
• Insulation Material:Polyamide (PA), Nylon
• Features:Solder Retention
• Operating Temperature:-25°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Natural
• Current Rating (Amps):2A
• Voltage Rating:100V
