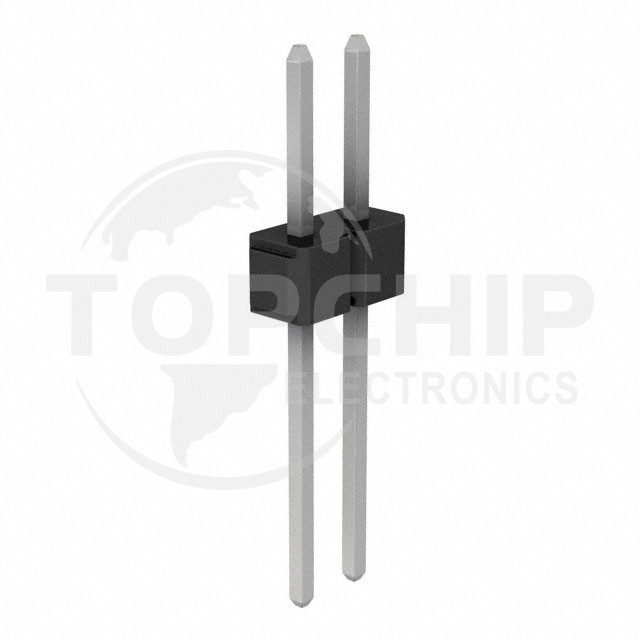

929836-03-01-RK Specifications

• Series:929
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:-
• Number of Positions:2
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Number of Positions Loaded:All
• Style:Board to Board
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.235" (5.97mm)
• Contact Length - Post:0.410" (10.41mm)
• Overall Contact Length:0.745" (18.92mm)
• Insulation Height:0.100" (2.54mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:200.0µin (5.08µm)
• Contact Finish - Post:Tin
• Contact Material:Copper Alloy
• Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
• Features:-
• Operating Temperature:-40°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):2.5A
• Voltage Rating:-
