BM02B-SURS-TF(LF)(SN)

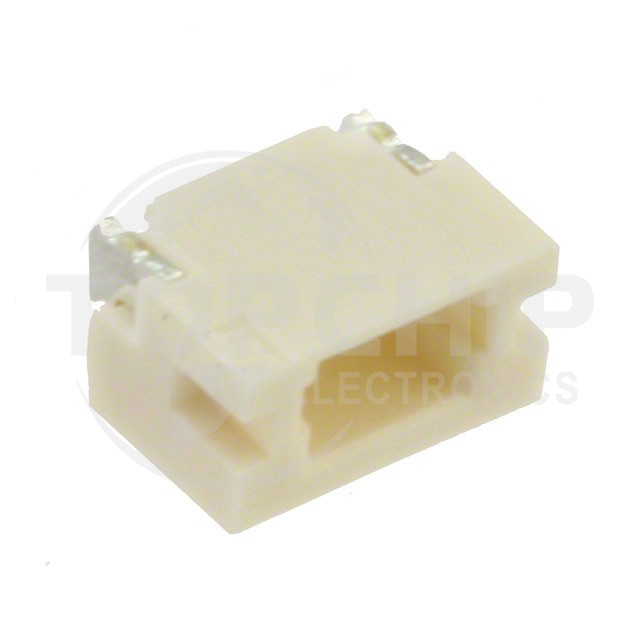

Image is for reference, please contact us to get the real picture

Manufacturer Part
BM02B-SURS-TF(LF)(SN)
Manufacturer
JST
Description
CONN HEADER SMD 2POS 0.8MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
18497
Datasheets
-

BM02B-SURS-TF(LF)(SN) Specifications

  • Series:SUR
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Outer Shroud Contact
  • Pitch - Mating:0.031" (0.80mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.106" (2.70mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Solder Retention
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):0.2A, 0.5A
  • Voltage Rating:30V
