DF3E-12P-2V(54)

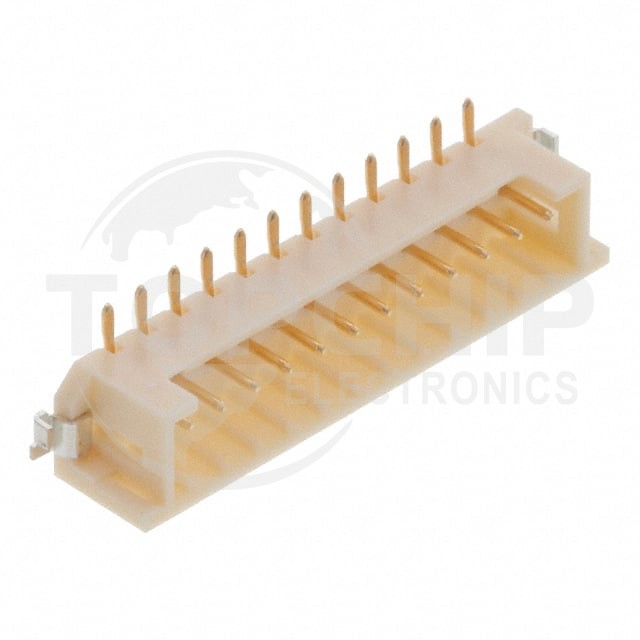

Image is for reference, please contact us to get the real picture

Manufacturer Part
DF3E-12P-2V(54)
Manufacturer
Hirose
Description
CONN HEADER SMD 12POS 2MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
336
Datasheets
-

DF3E-12P-2V(54) Specifications

  • Series:DF3
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:12
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.232" (5.90mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:8.00µin (0.203µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Guide, Solder Retention
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC
