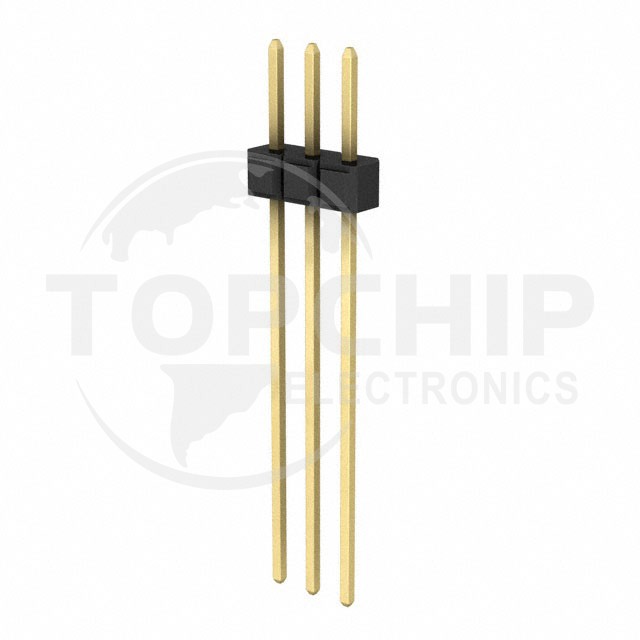

929647-07-03-I Specifications

• Series:929
• Package:Bulk
• Part Status:Active
• Connector Type:Header, Breakaway
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:3
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.235" (5.97mm)
• Contact Length - Post:0.910" (23.11mm)
• Overall Contact Length:1.245" (31.62mm)
• Insulation Height:0.100" (2.54mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:10.0µin (0.25µm)
• Contact Finish - Post:Gold
• Contact Material:Copper Alloy
• Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
• Features:-
• Operating Temperature:-40°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):2.5A
• Voltage Rating:-
