DF3A-7P-2DS

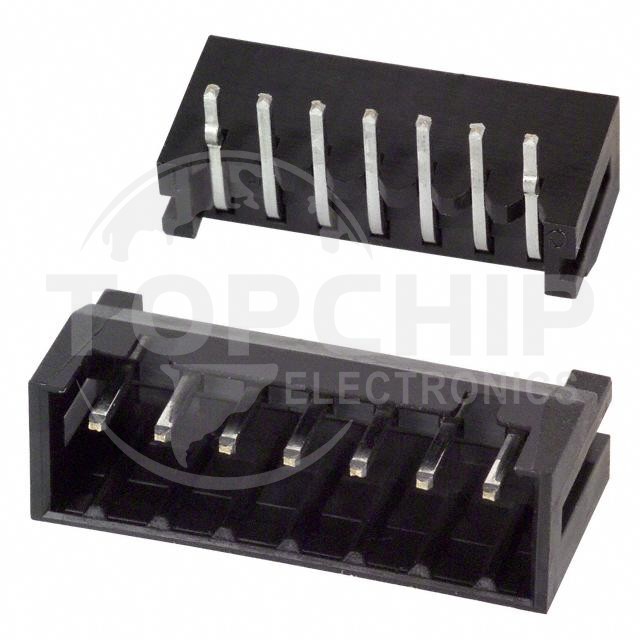

Image is for reference, please contact us to get the real picture

Manufacturer Part
DF3A-7P-2DS
Manufacturer
Hirose
Description
CONN HEADER R/A 7POS 2MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
109
Datasheets
-

DF3A-7P-2DS Specifications

  • Series:DF3
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:7
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Press-Fit, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.122" (3.10mm)
  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:-
  • Insulation Height:0.197" (5.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-
