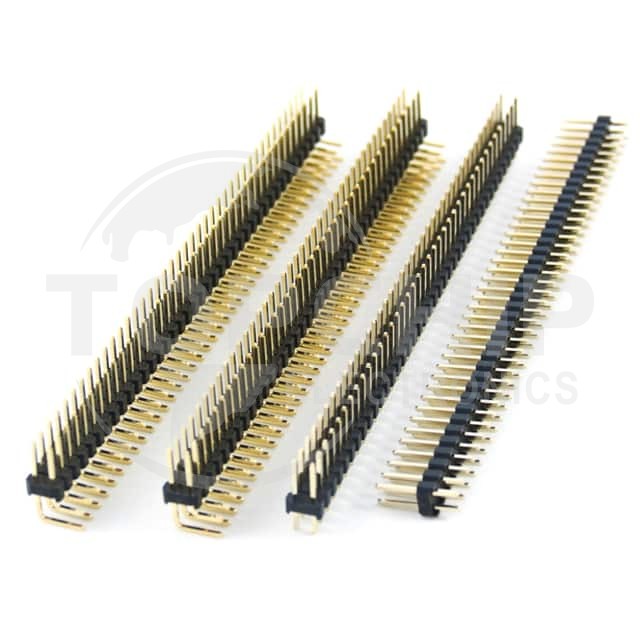

2011-2X05G00SB043B Specifications

• Series:2011
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:10
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Number of Positions Loaded:All
• Style:Board to Board
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.240" (6.10mm)
• Contact Length - Post:0.118" (3.00mm)
• Overall Contact Length:0.457" (11.60mm)
• Insulation Height:0.098" (2.50mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:Flash
• Contact Finish - Post:Gold
• Contact Material:Brass
• Insulation Material:Polybutylene Terephthalate (PBT)
• Features:-
• Operating Temperature:-40°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):3A
• Voltage Rating:-
