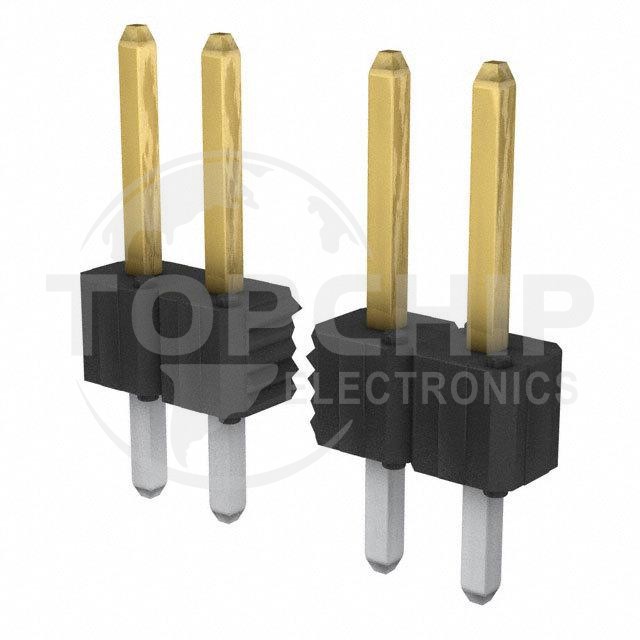

68001-216HLF Specifications

• Series:BERGSTIK® II
• Package:Bag
• Part Status:Obsolete
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:16
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.230" (5.84mm)
• Contact Length - Post:0.120" (3.05mm)
• Overall Contact Length:0.450" (11.43mm)
• Insulation Height:0.100" (2.54mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold or Gold, GXT™
• Contact Finish Thickness - Mating:15.0µin (0.38µm)
• Contact Finish - Post:-
• Contact Material:Phosphor Bronze
• Insulation Material:-
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
