2215-2X15G00DN-3.1U-H2.5

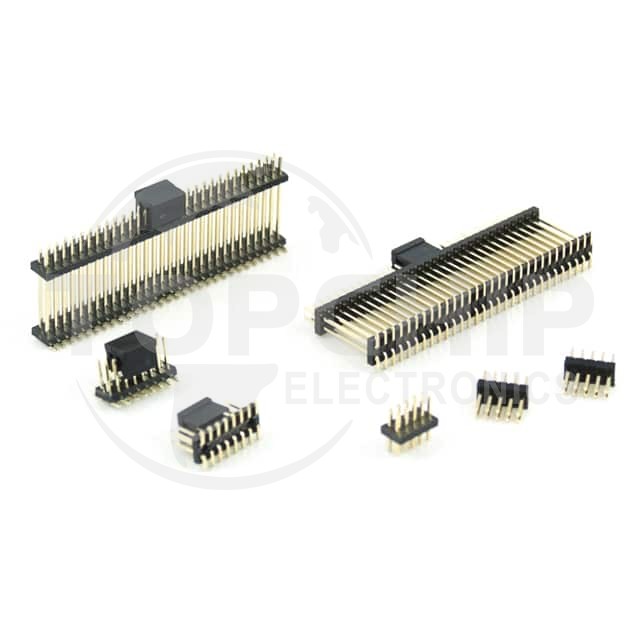

Image is for reference, please contact us to get the real picture

Manufacturer Part
2215-2X15G00DN-3.1U-H2.5
Manufacturer
Oupiin
Description
PIN HEADER, DOUBLE ROW, 30 PIN,
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
320
Datasheets
-

2215-2X15G00DN-3.1U-H2.5 Specifications

  • Series:2215
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:30
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.122" (3.10mm)
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Plastic
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):1A
  • Voltage Rating:-
