FX30B-3P-7.62DSA25

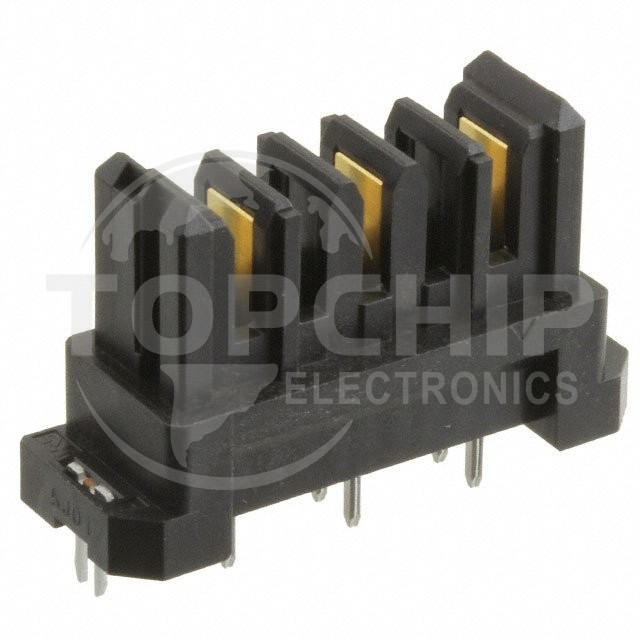

Image is for reference, please contact us to get the real picture

Manufacturer Part
FX30B-3P-7.62DSA25
Manufacturer
Hirose
Description
CONN HEADER VERT 3POS 7.62MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
4
Datasheets
-

FX30B-3P-7.62DSA25 Specifications

  • Series:FunctionMax™ FX30B
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Blade
  • Pitch - Mating:0.300" (7.62mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-
  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.756" (19.20mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.90µin (0.099µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Guide, Board Lock
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):15A
  • Voltage Rating:250V
