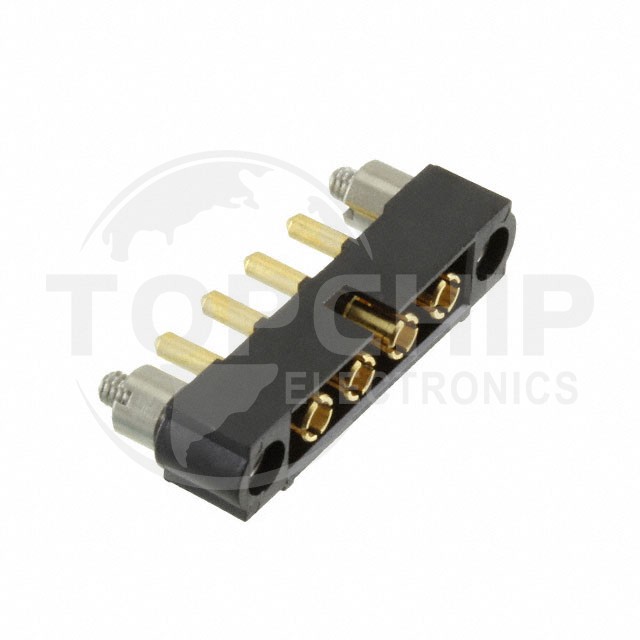

M80-5000000M3-04-332-00-000 Specifications

• Series:Datamate Mix-Tek
• Package:Tube
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin, Power
• Pitch - Mating:0.157" (4.00mm)
• Number of Positions:4
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Threaded
• Contact Length - Mating:-
• Contact Length - Post:0.197" (5.00mm)
• Overall Contact Length:-
• Insulation Height:0.220" (5.60mm)
• Contact Shape:Circular
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:10.0µin (0.25µm)
• Contact Finish - Post:-
• Contact Material:Copper Alloy
• Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
• Features:Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
• Operating Temperature:-55°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):20A
• Voltage Rating:800V
