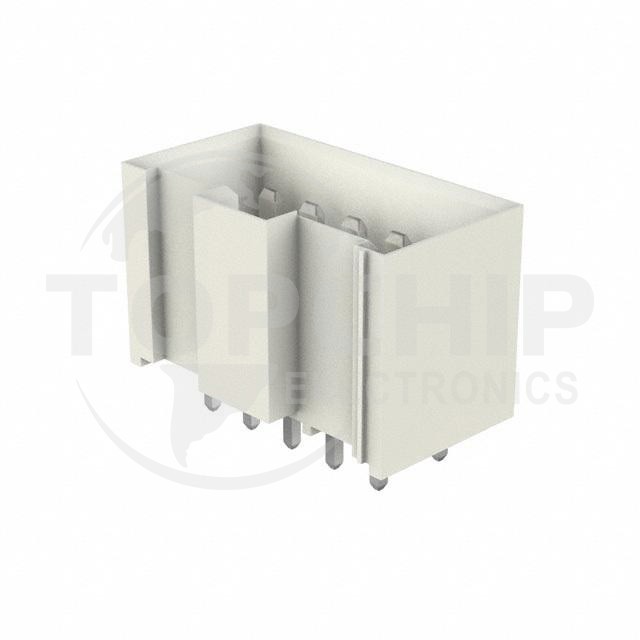

MDF6-10DP-3.5DSA(05) Specifications

• Series:MDF6
• Package:Bulk
• Part Status:Last Time Buy
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.138" (3.50mm)
• Number of Positions:10
• Number of Rows:2
• Row Spacing - Mating:0.197" (5.00mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Latch Holder
• Contact Length - Mating:0.220" (5.59mm)
• Contact Length - Post:0.138" (3.50mm)
• Overall Contact Length:-
• Insulation Height:0.512" (13.00mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin-Copper
• Contact Finish Thickness - Mating:39.4µin (1.00µm)
• Contact Finish - Post:-
• Contact Material:Brass
• Insulation Material:Polyamide (PA), Nylon
• Features:-
• Operating Temperature:-30°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:White
• Current Rating (Amps):-
• Voltage Rating:300V
