1724470204

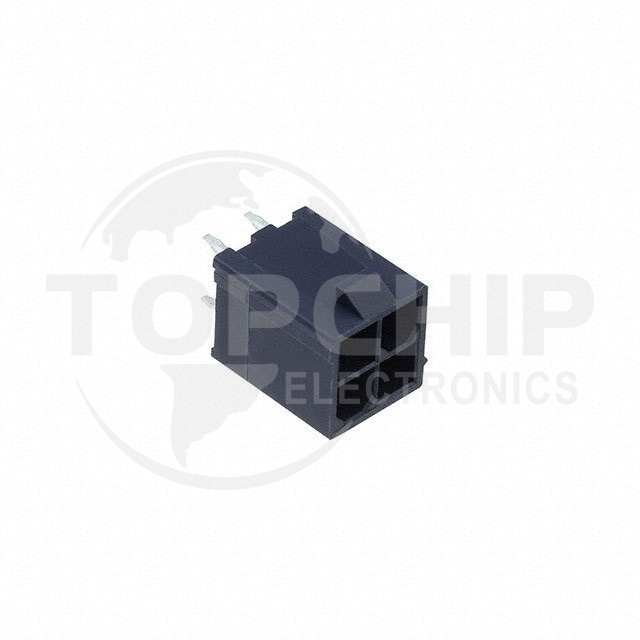

Image is for reference, please contact us to get the real picture

Manufacturer Part
1724470204
Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 4POS 4.2MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
746
Datasheets
-

1724470204 Specifications

  • Series:Mini-Fit Jr 172447
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:4
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-
  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.504" (12.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Glow Wire Compliant
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-2
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
